Chekpoint Above-Deck Electronic Faucet Single Hole Deck Mou

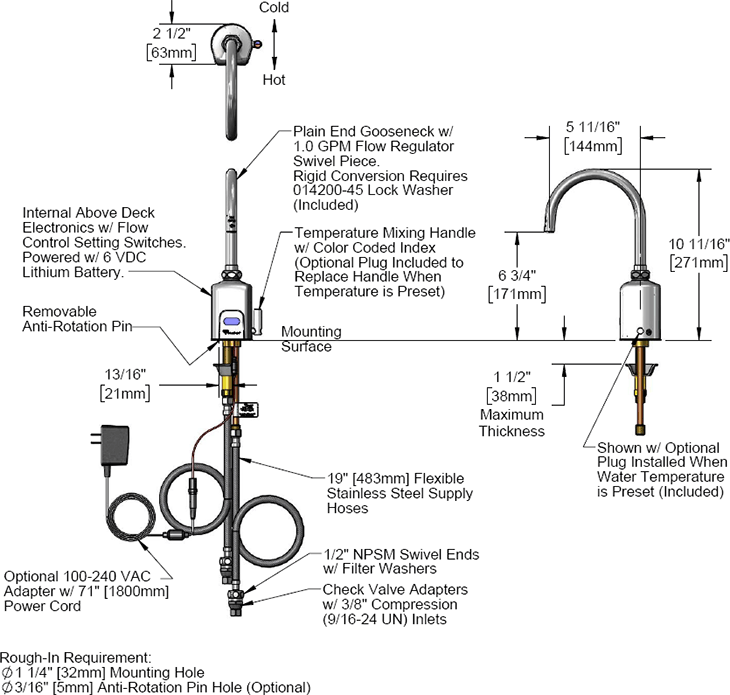

Single hole deck mount electronic sensor faucet with polished chrome plated brass body and 5-11/16" plain end swivel/rigid gooseneck w/ 1.0 GPM flow regulator, above deck electronic AC/DC control module with internal flow control setting switches, above deck temperature mixing handle, anti-rotation pin, 19" flexible stainless steel supply hoses and check valve adapters with 3/8" compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements.

  • Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
  • Temperature: 40°F - 140°F (4.44°C - 60°C)
  • Water Consumption: @ 10 sec = .17 gal
  • 1.00 GPM @ 60 psi (3.79 L/min @ 4.14 bar)
$ 827.60
42735069

Secure transaction
42735069

Chekpoint Above-Deck Electronic Faucet Single Hole Deck Mou

$ 827.6 / each
Total: $ 827.6
Item Added to Cart
SKU
Description
Quantity
Show Cart

More Info

Features & Benefits

  • Single hole deck mount faucet with polished chrome plated brass body
  • 5-11/16" plain end swivel/rigid gooseneck
  • 1.0 GPM flow control in swivel piece
  • Above deck electronic control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
  • Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
  • Plug in AC transformer or 6 VDC lithium battery (DC) power options
  • Above deck temperature mixing handle
  • Optional body plug replaces handle when temperature is preset
  • Anti-rotation pin
  • 19" flexible stainless steel supply hoses with filter washers
  • Check valve adapters with 3/8" compression connections
  • Low battery LED indicator light
  • Material: Polished chrome plated brass body and tubular spout

Chekpoint Faucets Standard Features:

  • Hands-free washing greatly reduces risk of contamination
  • Sensor-operated faucets conserve water
  • Water-resistant circuit control module
  • Each model comes with the convenience of electric plug-in (AC) and battery (DC) power options
  • ADA-compliant
  • Adjustable temperature control mixing valve
  • Proven electronic technology
  • Adjustable automatic time-out feature
  • Adjustable water shut-off delay
  • Chrome plated brass
  • Troubleshooting LED indicator lights
  • Scratch-resistant sensor lens
  • Filtered solenoid valve with serviceable strainer filter
  • Modular quick-release sensor connections
  • Low battery indicator light
  • Pre-assembled with appropriate mounting hardware included
  • Vandal-resistant aerators (2.2 GPM)
  • Check valves for cross-flow prevention in all models
  • Requires no sealants for easy installation
