T&S Brass Products B-1230

SECTION NAVIGATION
Glass Filler Water Station, Pedestal Glass Filler And Drip Pan

Glass Filler | Drip Pan Assembly

  • 10-5/8" (270 mm) x 12-5/8" (321 mm) drip pan is one piece of 18 gauge stainless steel
  • B-1210 push back glass filler with 7-3/4" (197 mm) clearance from tip to pan (other heights available on request)
  • Coupling nut and 1/4" (6 mm) sweat tailpiece for copper tube connection
  • 2-1/4" diameter grid drain
  • Drain 1-1/4" x 3-3/4" long, 17 gauge tailpiece
SKU Product Name Price QTY
B-1230 Glass Filler Water Station, Pedestal Glass Filler And Drip Pan $252.00
B-1230-12 Water Station W/ 12" Pedestal Glass Filler & Drip Pan Assembly $283.54
B-1230-WFK Water Station W/ 8" Pedestal Type Glass Filler, Drip Pan, Drain & Water Filtration Kit $590.08
SKU Repair Parts Price QTY
B-1210 Glass Filler, 8" Deck Mount Pedestal, 1/2" Npt Male Shank $129.60
010126-45 Glass Filler Drip Pan Drain Assembly $36.70
015550-45 Lever Arm Repair Kit (New-Style Glass Filler) $15.66
016783-40 Adjustable Deck Flange Assembly $19.72
015588-40 Adjustable Outlet W/ Hex Key For Glass Filler $33.23
015589-40 Valve Assembly For New Glass Filler $25.03
183F Glass Filler Drip Pan Grid (Stainless Steel) $30.50
010123-45 Glass Filler Drip Pan (Stainless Steel) $96.55
015887-40 B-1210 Glass Filler Pedestal & Flange Assembly $49.55
015886-40 B-1210 Glass Filler Pedestal $34.34
017296-40 B-1215-12 Glass Filler Pedestal & Flange Assembly $107.74
017294-40 B-1215-12 Glass Filler Pedestal $54.72
B-1205 Glass Filler, Wall Mount, 3/8" Npt Male Inlet $108.69
B-WFK Water Filtration Kit W/ Fittings & Braided Flex Hoses $302.33
5EF-0005 Equip Sensor Fct Flexible Supply Hose $16.32
006101-45 Adapter Fitting, 3/8-18Npt-M X 9/16-24Un Male $14.96
148X 3/8" Npt Street Elbow, Flat Style (Plated) $44.68
B-WFDS Water Filtration Docking Station W/ Shut-Off Lever $76.80
B-WFC Water Filter Cartridge - 15,000 Gallons $164.50
013146-45 Braided Supply Hose Chekpoint $19.42
016640-45 Torx Wrench For Glass Filler $8.80
Technical Documents

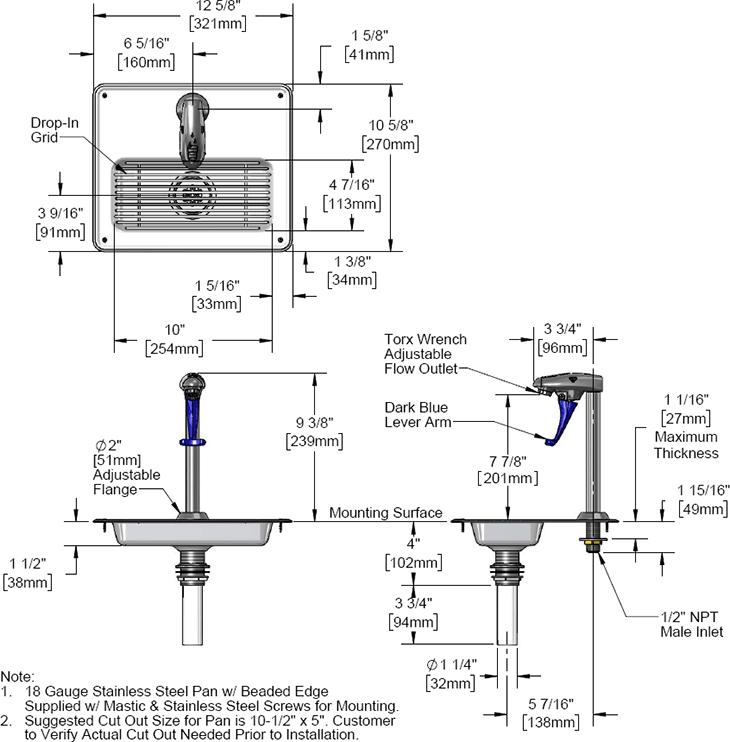

B-1230: Specifications



More Info

B-1230

01

8" Pedestal Type Glass Filler SKU: B-1210

02

Drip Pan Drain SKU: 010126-45

03

Lever Arm Repair Kit SKU: 015550-45

04

Adjustable Deck Flange Repair Kit SKU: 016783-40

05

Adjustable Outlet w/ Torx Wrench SKU: 015588-40

06

Valve SKU: 015589-40

07

Drip Pan Grid SKU: 183F

08

Drip Pan SKU: 010123-45

09

Pedestal SKU: 015887-40

10

B-1210 Pedestal SKU: 015886-40

B-1230-12

01

Lever Arm Repair Kit SKU: 015588-40

02

Valve SKU: 015589-40

03

Adjustable Outlet w/ Torx Wrench SKU: 015550-45

04

8" Pedestal Glass Filler SKU: 016783-40

05

B-1210 Pedestal SKU: 017296-40

06

Pedestal SKU: 017294-40

07

Adjustable Deck Flange Repair Kit SKU: B-1205

08

Drip Pan SKU: 017294-40

09

Drip Pan Drain SKU: B-1205

10

Drip Pan Grid SKU: 017294-40

B-1230-WFK

01

8" Pedestal Type Glass Filler SKU: B-1210

02

Lever Arm Repair Kit SKU: 015550-45

03

Valve Assembly SKU: 015589-40

04

Adjustable Outlet w/ Torx Wrench SKU: 015588-40

05

B-1210 Glass Filler Pedestal SKU: 015886-40

06

Pedestal Assembly SKU: 015887-40

07

Adjustable Deck Flange Repair Kit SKU: 016783-40

08

Water Filtration Kit SKU: B-WKF

09

Supply Hose, 9/16-24 Female x 1/2" NPSM SKU: 5EF-0005

10

Adapter, 3/8" NPT x 9/16"-24 UN Male SKU: 006101-45

11

3/8 Street Elbow SKU: 148X

12

Water Filtration Docking Station SKU: B-WFDS

13

Filter Cartridge SKU: B-WFC

14

Supply Hose, 9/16-24 Fem (3/8" Comp) SKU: 013146-45

15

Drip Pan Drain SKU: 010126-45

16

Drip Pan SKU: 010123-45

17

Drip Pan Grid SKU: 183F
