B-1110-LN

Workboard Faucet, Deck Mount, 4" Centers, Lever Handles, Less Nozzle

$139.20 / each

In Stock

Workboard Faucet, Deck Mount, 4" Centers, Lever Handles, Less Nozzle

T&S Brass B-1110-LN

Workboard Faucet, Deck Mount, 4" Centers, Lever Handles, Less Nozzle

4" deck mount mixing faucet with chrome plated brass body, swivel outlet (less nozzle), compression cartridges with spring checks, lever handles, 1/2" NPT male inlets and chrome plated escutcheon. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

  • Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
  • Temperature: 40ºF - 140ºF (4.44ºC - 60ºC)
  • 10.03 GPM @ 60 psi (37.97 L/min @ 4.14 bar)

Downloads: Specifications | Installation

$139.20

B-1110-LN

In Stock

Total: $139.20



Secure transaction


Material Safety Data Sheets (MSDS)

Related Products

B-1110-LN-WH4

Workboard Faucet, 4" Deck Mount, 4" Wrist-Action Handles, Quarter-turn Eternas, Less Nozzle

$197.24

B-1110-XS-LN

Workboard Faucet, Deck Mount, 4" Centers, Lever Handles, 2" Shank, Less Nozzle

$151.85

B-1110

Workboard Faucet, Deck Mount, 4" Centers, 6" Swing Nozzle, Lever Handles

$177.16

B-1111

Workboard Faucet, Deck Mount, 4" Centers, 8" Swing Nozzle, Lever Handles

$179.35

B-1112

Workboard Faucet, Deck Mount, 4" Centers, 10" Swing Nozzle, Lever Handles

$202.47

B-1113

Workboard Faucet, Deck Mount, 4" Centers, 12" Swing Nozzle, Lever Handles

$185.02

B-1131

Workboard Faucet, Deck Mount, 4" Centers, 18" Double Joint Nozzle, Lever Handles

$313.31

B-1141

Workboard Faucet, Deck Mount, 4" Centers, 133X Swivel Gooseneck, Lever Handles

$192.44

000922-45

Screw for Lever Handle

$6.00

001661-45

Index Ring, Hot Water (Red)

$5.79

001638-45

Lever Handle, Blank

$10.13

009749-25

Bonnet for B-1100 Workboard Faucet Series (Old-Style)

$14.49

009753-25

B-1100 Spindle Assembly, Hot (RTC)

$46.95

000763-20

Removable Brass Seat For B-1100 Series

$7.40

000712-25

B-1120 Escutcheon Lock Nut, Chrome-Plated Brass (Old Style)

$9.10

001258-40

B-1100 & B-1110 Workboard Faucet Escutcheon, Chrome Plated

$43.02

001660-45

Index Ring, Cold Water (Blue)

$5.79

009754-25

B-1100 Spindle Assembly, Cold (LTC)

$46.95

000999-45

Brass Washer, 1-5/8" OD x 29/32" ID x .089" Thick

$8.29

002954-45

Brass Lock Nut, 1/2-14NPSL

$7.00

150A

Tapered Tailpiece Assembly, 1/4" NPT Male

$9.16

B-1110-LNM

Workboard Faucet, Deck Mount, 4" Centers, Lever Handles, Less Nozzle (Qty. 6)

$727.60

B-1110

Workboard Faucet, Deck Mount, 4" Centers, 6" Swing Nozzle, Lever Handles

$177.16

B-1111

Workboard Faucet, Deck Mount, 4" Centers, 8" Swing Nozzle, Lever Handles

$179.35

B-1112

Workboard Faucet, Deck Mount, 4" Centers, 10" Swing Nozzle, Lever Handles

$202.47

B-1113

Workboard Faucet, Deck Mount, 4" Centers, 12" Swing Nozzle, Lever Handles

$185.02

B-1131

Workboard Faucet, Deck Mount, 4" Centers, 18" Double Joint Nozzle, Lever Handles

$313.31

B-1141

Workboard Faucet, Deck Mount, 4" Centers, 133X Swivel Gooseneck, Lever Handles

$192.44



More Info

Features & Benefits

  • 4" deck mount mixing faucet w/ chrome plated brass body
  • Swivel outlet accepts T&S swing nozzles
  • Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
  • Lever handles w/ color coded indexes
  • 1/2" NPT male inlets
  • Tailpieces and nuts for 1/4" NPT male connections
  • Chrome plated escutcheon
  • Material: Chrome plated brass body and chrome plated metal handles & escutcheon

Variations

  • B-1110-LNM Master Box: Qty 6
  • B-1110-LN-WH4 Lever handles are replaced w/ 4" wrist-action handles
  • B-1110-XS-LN 1" shank is replaced by 2" shank

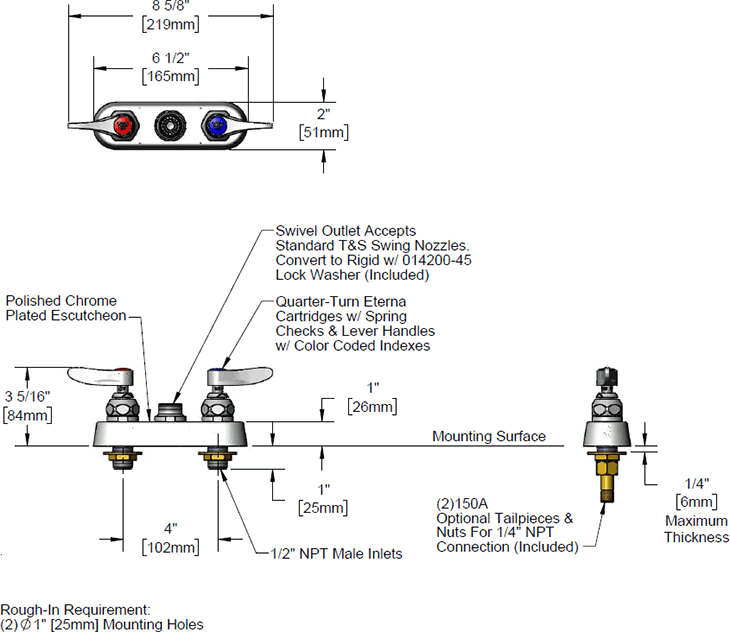

Spec Drawings / Parts Explosion
B-1110-LN.pdf
