T&S Brass Products B-0866-04

SECTION NAVIGATION
Medical Faucet, Concealed Body, 8" Centers, 4" Handles, Swivel Gooseneck W/ Rosespray

Deck-mounted Medical Lavatory Swivel-joint Faucet
w/ Swivel Gooseneck and Wrist-action Handles

  • 8" (max.) adjustable center, deck- mount mixing faucet
  • 5-3/4" swivel/rigid gooseneck
  • Rosespray outlet, Series 1 (B-0103-01)
  • Eterna compression cartridges w/ Teflon seat washers
  • 4" wrist-action handles with color coded indices
  • 1/2" NPT male inlets
  • Variations:

  • B-0866 4" wrist-action handles replaced w/ 6" wrist-action handles
  • B-0866-04-CR Eterna cartridges are replaced Cerama cartridges
  • B-0866-PV Includes pedal valve, and 4" wrist-action handles replaced w/ 6" wrist-action handles
  • Additional model variations shown in More Info section, below

Downloads: Specs | Install | Submittal

SKU Product Name Price QTY
B-0866 Medical Faucet, Concealed Body, 8" Centers, 6" Handles, Swivel Gooseneck W/ Rosespray $281.83
B-0866-04 Medical Faucet, Concealed Body, 8" Centers, 4" Handles, Swivel Gooseneck W/ Rosespray $247.89
B-0866-04L Medical Faucet, Concealed Body, 12" Centers, Wrist Handles, Swivel Gooseneck W/Rosespray $330.51
B-0866-04-CR 8" Widespread Faucet, Concealed Body, 4" Handles, Swivel Gooseneck, Rosespray, Ceramas $247.89
B-0866-04-LN 8"C/C Deck Mount Fct,Less Nozzle,1/4-Turn Cartridges $228.69
B-0866-07-PV Deck Mount,Adjustable Centers,Pedal Valve Inlet,B-Wh6 Handles,Swivel Gooseneck $298.97
B-0866-L Medical Faucet, Concealed Body, 12" Centers, Wrist Handles, Swivel Gooseneck W/Rosespray $355.89
B-0866-PV Medical Faucet, Conceal Body, Wrist Handle, Pedal Valve Inlet, Swivel Gooseneck, Rosespray $309.26
SKU Repair Parts Price QTY
B-0103-01 Rosespray Outlet, 55/64-27Un Female Threads $24.22
001048-45 Nozzle Tip Washer $4.13
009538-45 Split Swivel Washer (Delrin) $4.13
011429-45 Swivel Sleeves (Two-Pack) $4.70
001074-45 Swivel Nozzle O-Ring #2-114 (Nitrile) $3.84
014200-45 Easyinstall S'Steel Lock Washer (Swivel/Rigid) $4.22
001686-45 Snap-In Index, Medium Blue, Cold Water Cw $4.32
000925-45 Handle Screw, Ss Pan Head $4.22
B-WH4 4" Wrist-Action Handle $25.70
006215-40 Swivel Yoke / Swivel Outlet Asm, 8" Centers $92.30
006477-40 Spindle Assembly, Eterna, Cws Escutcheon Bonnet, Ltc (Cold), Teflon Seat Washer $45.12
161A B-0850 Side Body Assembly (Cold) W/Out Handle $111.09
000958-20 Brass Coupling Nut, 1/2" Npsm Female Threads $5.18
162A B-0850 Side Body Assembly (Hot) W/Out Handle $111.09
006478-40 Spindle Assembly, Eterna, Cws Escutcheon Bonnet, Rtc (Hot), Teflon Seat Washer $45.12
001257-40 B-0850 Side Body Escutcheon (Chrome-Plated) $12.16
001194-45 Snap-In Index Button, Red (Hot Water) $4.32



More Info
Variations: B-0866-04 Medical Lavatory Faucets
Model Handle Cartridge Nozzle Outlet Notes
B-0866 6" Wrist-action Eterna 6" Swivel Gooseneck Rosespray 8" Adjustable Centers
B-0866-04 4" Wrist-action Eterna 6" Swivel Gooseneck Rosespray 8" Adjustable Centers
B-0866-04L 4" Wrist-action Eterna 6" Swivel Gooseneck Rosespray 12" Adjustable Centers
B-0866-04-CR 4" Wrist-action Cerama 6" Swivel Gooseneck Rosespray 8" Adjustable Centers
B-0866-04-LN 4" Wrist-action 1/4-turn Eterna NO Nozzle --- 8" Adjustable Centers
B-0866-07-PV 6" Wrist-action Eterna 6" Swivel Gooseneck 2.2Gpm Aerator 8" Adjustable Centers
Pedal Valve
B-0866-L 6" Wrist-action Eterna 6" Swivel Gooseneck Rosespray 12" Adjustable Centers
B-0866-PV 6" Wrist-action Eterna 6" Swivel Gooseneck Rosespray 8" Adjustable Centers
Pedal Valve

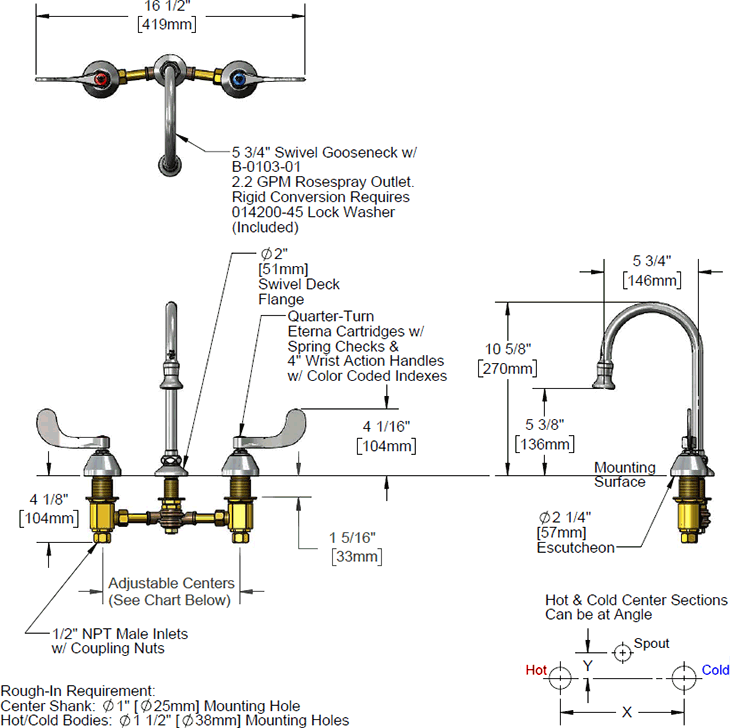

  The faucet will fit "X" w/ standard
If "Y" is 1/4" IPS cross pipes furnished
1/2" 8"
1" 7-3/4"
1-1/2" 7-3/8"
2" 7"

LAVATORY FAUCETS B-0866-04

01

Rosespray Outlet SKU: B-0103-01

02

Nozzle Tip Washer SKU: 001048-45

03

Swivel Washer SKU: 009538-45

04

Swivel Sleeves (pair) SKU: 011429-45

05

O-ring SKU: 001074-45

06

Anti-rotation Star Washer SKU: 014200-45

07

Cold Water Index (blue) SKU: 001686-45

08

Lab Handle Screw SKU: 000925-45

09

4" Wrist Action Handle SKU: B-WH4

10

8" Swivel Gooseneck
Swivel Yoke
SKU: 006215-40

11

Eterna Cartridge w/ Escutcheon Bonnet (left-to-close) SKU: 006477-40

12

B-0850 Side Body - Cold SKU: 161A

13

Coupling Nut SKU: 000958-20

14

B-0850 Side Body - Hot SKU: 162A
B-0866-04 (CONT'D)

15

Eterna Cartridge w/ Escutcheon Bonnet (right-to-close) SKU: 006478-40

16

Bell Escutcheon SKU: 001257-40

17

Hot Water Index (red) SKU: 001194-45
