T&S Brass Products B-0252

SECTION NAVIGATION

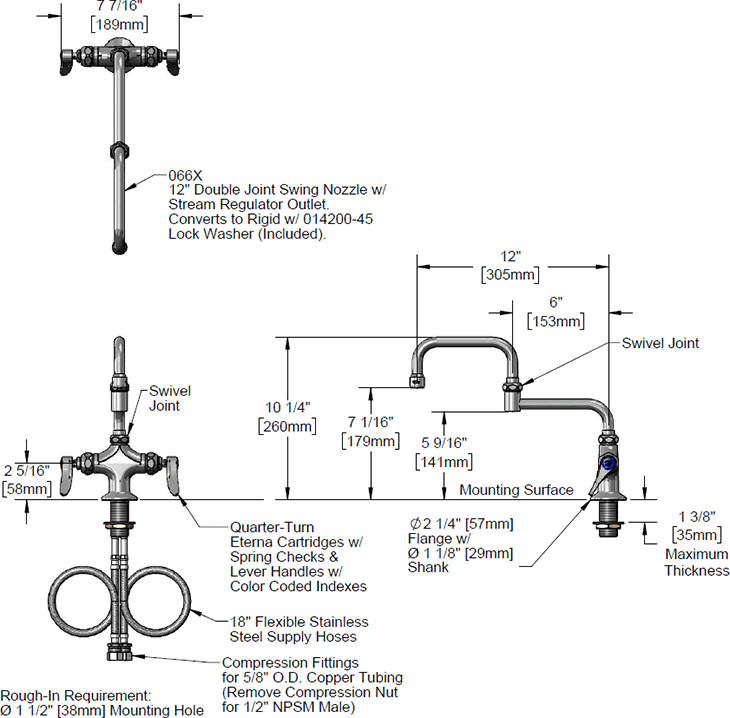

Double Pantry Faucet, Single Hole Base, 12" Double Joint Swing Nozzle

Double Wall Faucet | 12" Double-Joint Swing Nozzle

  • Single hole dual-temperature deck-mount faucet
  • Eterna cartridge-spindles
  • 12" double-joint swing nozzle (066X) with stream regulator outlet (B-PT)
  • Lever handles with color-coded index
  • 1/2" NPSM male inlets
  • Two 18" flexible supply hoses

Download: Specs | Installation

SKU Product Name Price QTY
B-0252 Double Pantry Faucet, Single Hole Base, 12" Double Joint Swing Nozzle $259.20
SKU Repair Parts Price QTY
066X Double Joint Swing Nozzle, 6" Back Section, 6" Front Section, 12" Overall Length $113.14
151X 6" Back Section For Double-Joint Nozzle $63.88
153X 6" Front Section For Double-Joint Nozzle $51.18
B-PT Stream Regulator Outlet, 55/64-27 Un Female Threads (Series #1) $5.28
001048-45 Nozzle Tip Washer $4.13
009538-45 Split Swivel Washer (Delrin) $4.13
011429-45 Swivel Sleeves (Two-Pack) $4.70
001074-45 Swivel Nozzle O-Ring #2-114 (Nitrile) $3.84
005959-40 Eterna Spindle Assembly, Cold (Left Hand) Ltc $42.09
002713-40 Eterna Spindle Assembly, Left Hand (Cold) $45.12
001660-45 Index Ring, Cold Water (Blue) $4.13
002290-45 Brass Washer: 1-31/32" Od, 1-3/16 Id, 3/32" Thick $5.79
000965-45 B-0113 Shank Lock Nut $5.84
012534-45 B-0113 Pru Flex Supply Hoses (Qty=2) $21.42
005960-40 Eterna Spindle Assembly, Hot (Right Hand) Rtc $42.09
002714-40 Eterna Spindle Assembly, Right Hand (Hot) $45.12
001638-45 Lever Handle, Blank $7.04
001661-45 Index Ring, Hot Water (Red) $4.13
000922-45 Screw For Lever Handle $4.32



More Info

01

12" Double Joint Swing Nozzle SKU: 066X

02

6" Back Section SKU: 151X

03

6" Front Section SKU: 153X

04

Stream Regulator Outlet SKU: B-PT

05

Nozzle Tip Washer SKU: 001048-45

06

Swivel Washer SKU: 009538-45

07

Swivel Sleeves (2) SKU: 011429-45

08

O-Ring SKU: 001074-45

09

Eterna Cartridge, LTC SKU: 005959-40

10

Eterna Cartridge LTC w/ Handle, Index & Screw SKU: 002713-40

11

Blue Index-CW SKU: 001660-45

12

Lock Washer SKU: 002290-45

13

Lock Nut SKU: 000965-45

14

18" Flexible Supply Hose (2) SKU: 012534-45

15

Eterna Cartridge, RTC SKU: 005960-40

16

Eterna Cartridge RTC w/ Handle, Index & Screw SKU: 002714-40

17

Lever Handle SKU: 001638-45

18

Red Index-HW SKU: 001661-45

19

Lever Handle Screw SKU: 000922-45

Available inofrmation and diagrams are often available for download in the product description section at the top of every page.
