B-0199-09

Aerator, Vandal Resistant, 2.2 GPM, 15/16-27UN Male Threads

$22.00 / each

In Stock

Aerator, Vandal Resistant, 2.2 GPM, 15/16-27UN Male Threads

T&S Brass B-0199-09

Aerator, Vandal Resistant, 2.2 GPM, 15/16-27UN Male Threads

2.2 GPM vandal resistant aerator with polished chrome plated brass body, 15/16-27 UN male thread. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.

  • Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
  • Temperature: 40ºF - 140ºF (4.44ºC - 60ºC)
  • 2.20 GPM @ 60 psi (8.33 L/min @ 4.14 bar)

Downloads: Specifications

$22.00

B-0199-09

In Stock

Total: $22.00



Secure transaction


Material Safety Data Sheets (MSDS)

More Info

Features & Benefits

  • 2.2 GPM vandal resistant aerator
  • 15/16-27 UN male threads, Series 9
  • Vandal-resistant fitting uses included tool to attach and remove aerator
  • Washer included
  • Low Lead Content (0.25% Max)
  • One year limited warranty
  • Vandal resistant key included
  • Material: Polished chrome plated brass body


Aerator Outlets Explained

T&S Brass (B-0199-09) Aerator, Vandal Resistant, 2.2 GPM, 15/16-27UN Male Threads additional product graphic

Aerator Outlets

Faucet aerators introduce air into the water stream to produce a larger white stream soft to the touch and non-splashing.

T&S Brass (B-0199-09) Aerator, Vandal Resistant, 2.2 GPM, 15/16-27UN Male Threads additional product graphic

Laminar Flow Outlets

Laminar flow (laminar stream) straighteners produce a non-aerated water stream. Ideal for high flow applications or healthcare facilities (no mix water/air). Laminar spout-end devices deliver a crystal clear and nonsplashing stream.

T&S Brass (B-0199-09) Aerator, Vandal Resistant, 2.2 GPM, 15/16-27UN Male Threads additional product graphic

Non-aerated Spray

When the flow rate is too low to produce an aerated or laminar stream, a spray device is used to produce a miniature shower pattern to provide full coverage of the hands during washing. Sprays are recommended for use in public lavatories.

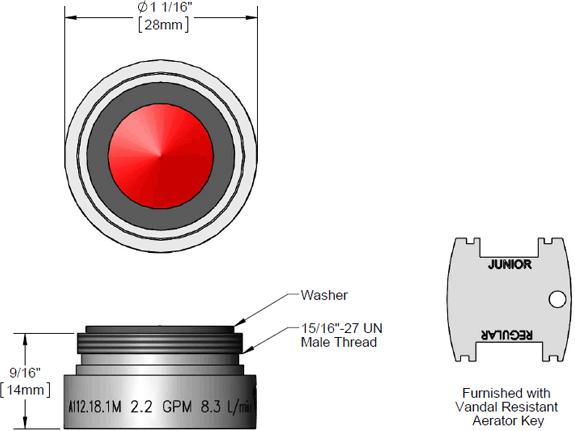

Spec Drawings / Parts Explosion
B-0199-09.pdf
