017493-45

EC-3106 ChekPoint Control Module (Manual By-Pass Tee)

$279.09 / each

In Stock

EC-3106 ChekPoint Control Module (Manual By-Pass Tee)

T&S Brass 017493-45

EC-3106 ChekPoint Control Module (Manual By-Pass Tee)

ChekPoint sensor faucet control module with blue module housing, internal flow control setting switches for adjusting auto time out & shut off delay settings, 3/8" NPSM male manual bypass outlet, optional auto flush feature flows water for 30 seconds after every 12 inactive hours, mechanical temperature mixing valve w/ intergral check valves and hardwire capable using terminals on back . Certified to NSF 61- Section 9, NSF 372 and UL 1951.

  • Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
  • Temperature: 40ºF - 140ºF (4.44ºC - 60ºC)

$279.09

017493-45

In Stock

Total: $279.09



Secure transaction


Material Safety Data Sheets (MSDS)

More Info

Features & Benefits

  • ChekPoint sensor faucet control module w/ blue module housing
  • Internal flow control setting switches for adjusting auto time out & shut off delay settings
  • 3/8" NPSM male manual bypass outlet
  • Optional auto flush feature flows water for 30 seconds after
  • every 12 inactive hours
  • Hardwire capable using terminals on back
  • EC-HARDWIRE transformer required / sold separately

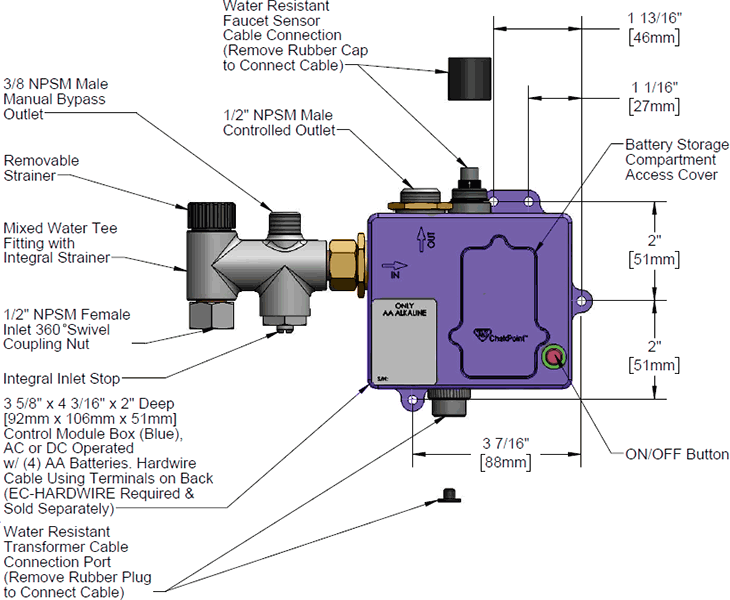

T&S Brass (017493-45) EC-3106 ChekPoint Control Module (Manual By-Pass Tee) additional product graphic

Chekpoint Faucets Standard Features:

  • Hands-free washing greatly reduces risk of contamination
  • Sensor-operated faucets conserve water
  • Water-resistant circuit control module
  • Each model comes with the convenience of electric plug-in (AC) and battery (DC) power options
  • ADA-compliant
  • Adjustable temperature control mixing valve
  • Proven electronic technology
  • Adjustable automatic time-out feature
  • Adjustable water shut-off delay
  • Chrome plated brass
  • Troubleshooting LED indicator lights
  • Scratch-resistant sensor lens
  • Filtered solenoid valve with serviceable strainer filter
  • Modular quick-release sensor connections
  • Low battery indicator light
  • Pre-assembled with appropriate mounting hardware included
  • Vandal-resistant aerators (2.2 GPM)
  • Check valves for cross-flow prevention in all models
  • Requires no sealants for easy installation
Spec Drawings / Parts Explosion
017493-45.pdf
